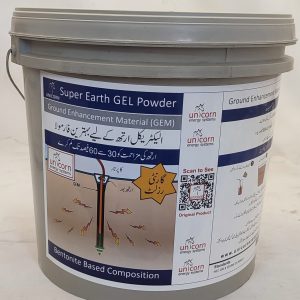

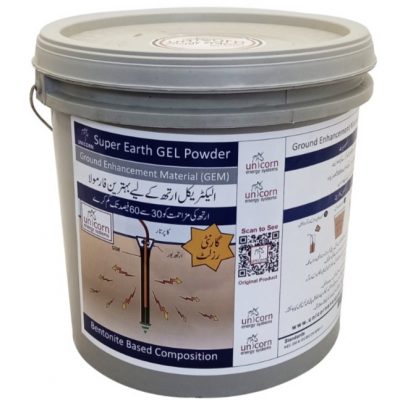

Super Earth Gel Powder — Bentonite-Based Earthing Chemical

Super Earth Gel Powder is bentonite Composition. Super Earth Gel Powder compound formulated specifically for Pakistan’s diverse soil conditions. Its primary component, bentonite clay, is an internationally recognized material for electrical earthing applications, offering very low resistance at the earth electrode. The composition is engineered to retain moisture around the earth electrode for an extended period, maintaining consistent earth resistance even during dry seasons.

Download Unicorn Super Earth GEL Powder Datasheet

USES : Super Earth Gel Powder is very effective for both as in industrial electrical earthing and residential electrical earthing

1: Residential Electrical Earthing

2: Solar PV system AC and DC earthing

3: Transformer High fault current earthing

4: Industrial Machines High fault current earthing

5: Lightning arrestor earthing

Ground Enhancement Material – Earthing Backfill Compound

How to Use Super Earth Gel Powder

• Mix super earth gel powder with water and mix it toughly
• After preparing homogenous mixture of gel, put it in earth pit or earth bore around your electrode
• water can be added in surplus for preparing mixture. Extra water will absorb in soil, leaving gel behind in the earth bore or earth pit
• Use one to two buckets of bentonite based super earth gel for one meter earth electrode in bore, depending on dryness of soil. For dry soil use 2 buckets and for wet soil use 1 bucket
• Use two buckets (wet soil) or three buckets (dry soil) of super earth gel in case of copper plate in earth pit, depending on dryness of soil.
• Do not put super earth gel in powder form in an earth pit or bore. Mix it in water before use

Electrical Earthing

Electrical Earthing is very fundamental protection in electrical system design both in residential and industrial level.

• It keeps people safe by preventing electric shocks.
• It prevents damage to electrical appliances and devices by preventing excessive current from running through the circuit.
• Furthermore, it prevents the risk of fire that could otherwise be caused by current leakage

We provide bentonite earth chemical in Lahore, Islamabad, Karachi, Multan, Peshawar and all over Pakistan through delivery service.
